Track Plan 10 - Kingfisher

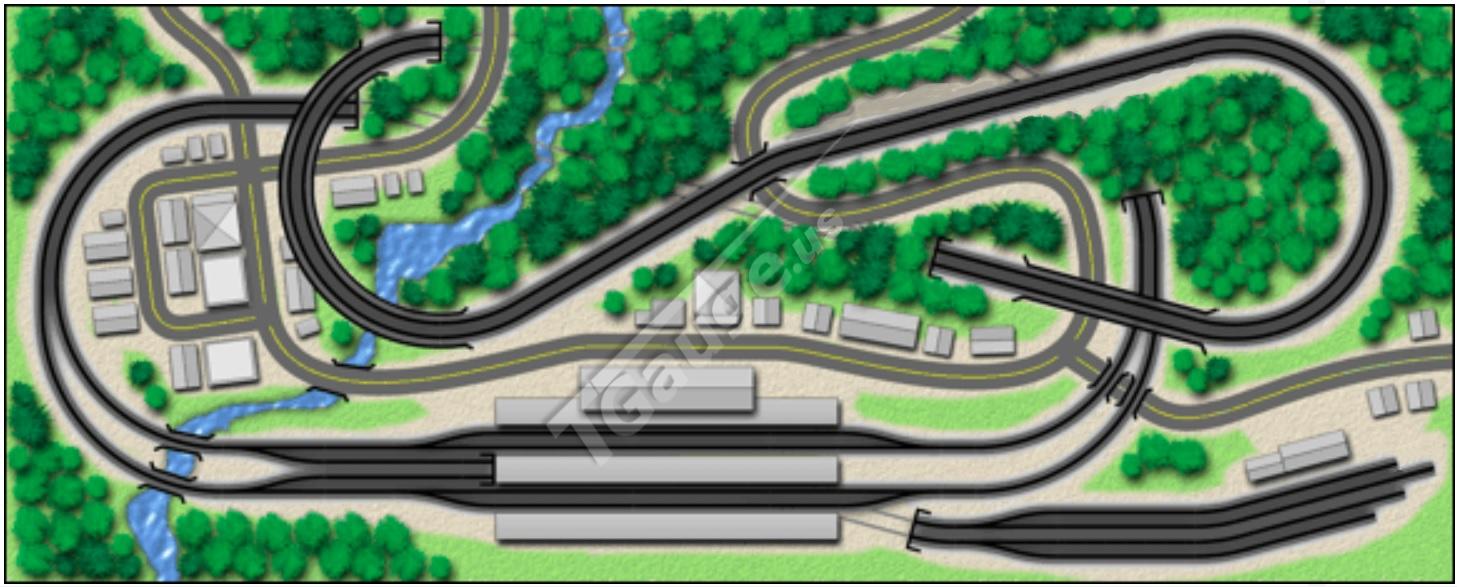

The Kingfisher track plan comes packed with scenic and railway details that will keep any serious modeler busy and entertained for weeks, months and years to come. The layout plan has a mainline station, sidings, bridges, tunnels and raised track sections. There's a town at the west end with a village adjacent to the station along with an outcrop of railway buildings to the east. With a track gradient that rises in the northern part of the layout, the model would also lend itself to a scenic backdrop - the sky's almost the limit!
All this model with all these features, come together on a base that will measure approximately 1300mm x 500mm (51¼" x 19¾").
Comes with the track sections listed below e.g. 12 x R-003 = 12 x 60mm straights;
13 x R-003 60mm Straight
13 x R-004 120mm Radius Curve 30°
14 x R-005 132mm Radius Curve 30°
13 x R-006 145mm Radius Curve 30°
5 x R-012 30mm Straight
1 x R-013 120mm Radius Curve 15°
1 x R-014 132mm Radius Curve 15°
5 x R-015 145mm Radius Curve 15°
4 x R-016 Left Hand Manual Turnout
4 x R-017 Right Hand Manual Turnout
6 x R-022 Power Track 60mm
50 x R-023 120mm Straight
5 x R-024 157mm Radius Curve 15°
12 x R-025 157mm Radius Curve 30°
4 x R-030 Isolating Track 30mm
2 x R-036 Power Track 30mm
Total of 152 Pieces of Track
Also Included at no extra cost;
2 x E-001 TGauge AC/DC Mains Adapter
8 x E-004 Power Cables
1 x P-052 Re-Railer
1 x T-005 Energizing & Stabilizing Pen

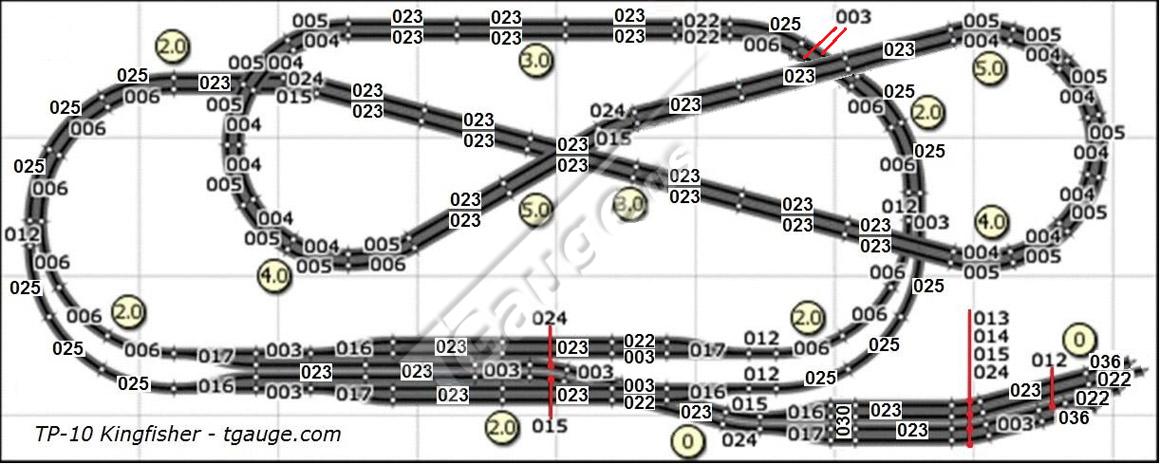

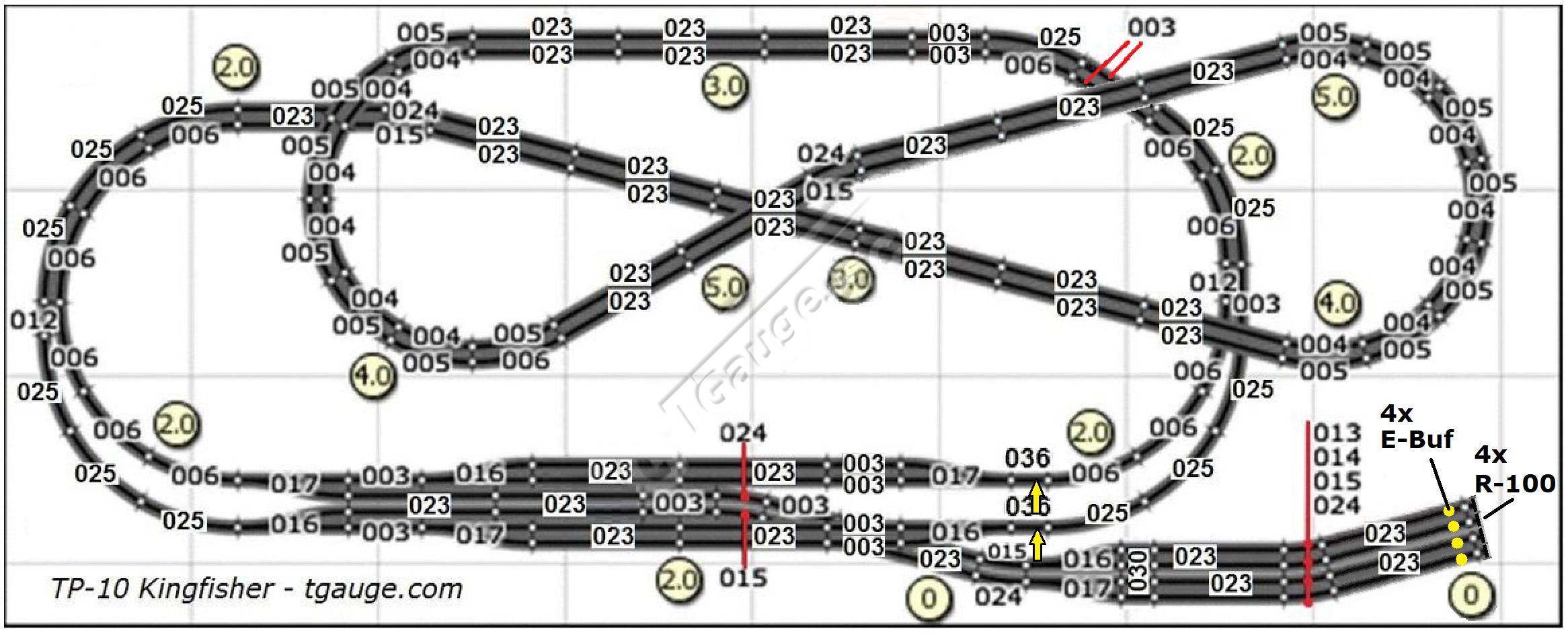

1 x Track Identification Plan
1 x Colored reference print of Track Plan
Note;
Does not include power control units E-012, E-013, baseboard or rolling stock.
